Display Type: DLP Single Chip 0.96;
Resolution: WUXGA (1920 × 1200);
Light Source: Red and blue dual-color laser;
Brightness: 21,000 lumens;
Uniformity: 90%;
Contrast Ratio: 3,000,000:1 (fully on/off);
Light Source Life: 20,000 hours (normal mode)/30,000 hours (Energy-saving mode)
Lens Type: Electric Lens;
Zoom ratio: 1.33:1 (standard lens);
Projection Ratio: 1.5–2.0: 1 (Standard lens);
Camera displacement-Horizontal: Maximum +20% to-20%;
Camera displacement-Vertical: Maximum +60% to-60%;
Trapezium Correction: Supported;
Quadrant Correction: Supported;

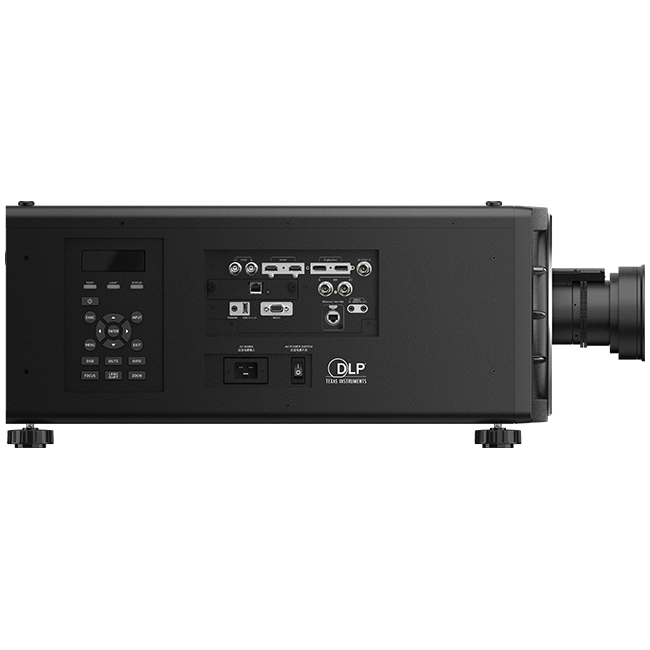

I/O:HDMI:2.0 x2
SDI:12G-SDI In x1 / Out x1
DVI-D:x1
3D Sync:3D SYNC IR x1 / SYNC In x1 / SYNC Out x1
RJ45:HDBaseT x1, LAN x1
RS-232:In x1
Wire Remote:In x1 / Out x1
USB:Type A*1 (Power Only 5V/2A) x1
12V Trigger (mini Jack):x1
Power Supply: AC 100–240 V, 50/60 Hz;
Power Consumption: 1300 W;
Standby Power: <0.5 W / <3.0 W (network standby);
Noise Level: Standard: 48 dB; Energy-efficient Mode: 46 dB;
Dimensions: 676.6 × 598.8 × 270 mm; Weight: 45.4 kg;
Operating Environment: Temperature 0–40 °C, Relative Humidity 10–85%; No condensation
Storage Environment: Temperature-20–60 °C, Relative Humidity 10–95%.No condensation
